Technical Data

Operating medium:

Solenoid valve for filtered, lubricated or non-lubricated air

Operation:

Solenoid, indirectly controlled

Flow direction:

Fixed

Mounting position:

Optional

Nominal size:

6 and 12 mm

Port size:

G 1/4, G 1/2

Electrical connection:

Connector interface to DIN EN 175301-803 form A and B

Operating pressure:

1 to 10 bar

Temperature:

-10 ... 50 °C

Material:

Housing: Aluminium
Pilot flange: Plastic
Seat seal: NBR (Perbunan)

Symbol:

Circuit diagram:

Basic dimensions for solenoid operators:

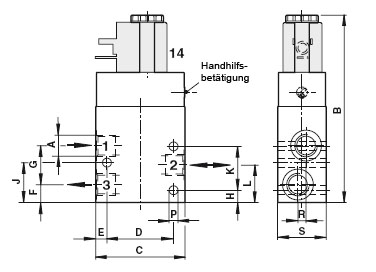

Basic dimensions for valves:

 B

 C

D

 E

F

G

H

J

K

L

P

R

S

 G 1/4

 115,5

55

41

7

11

24

7,5

24,5

27

23

5,5

5

30
